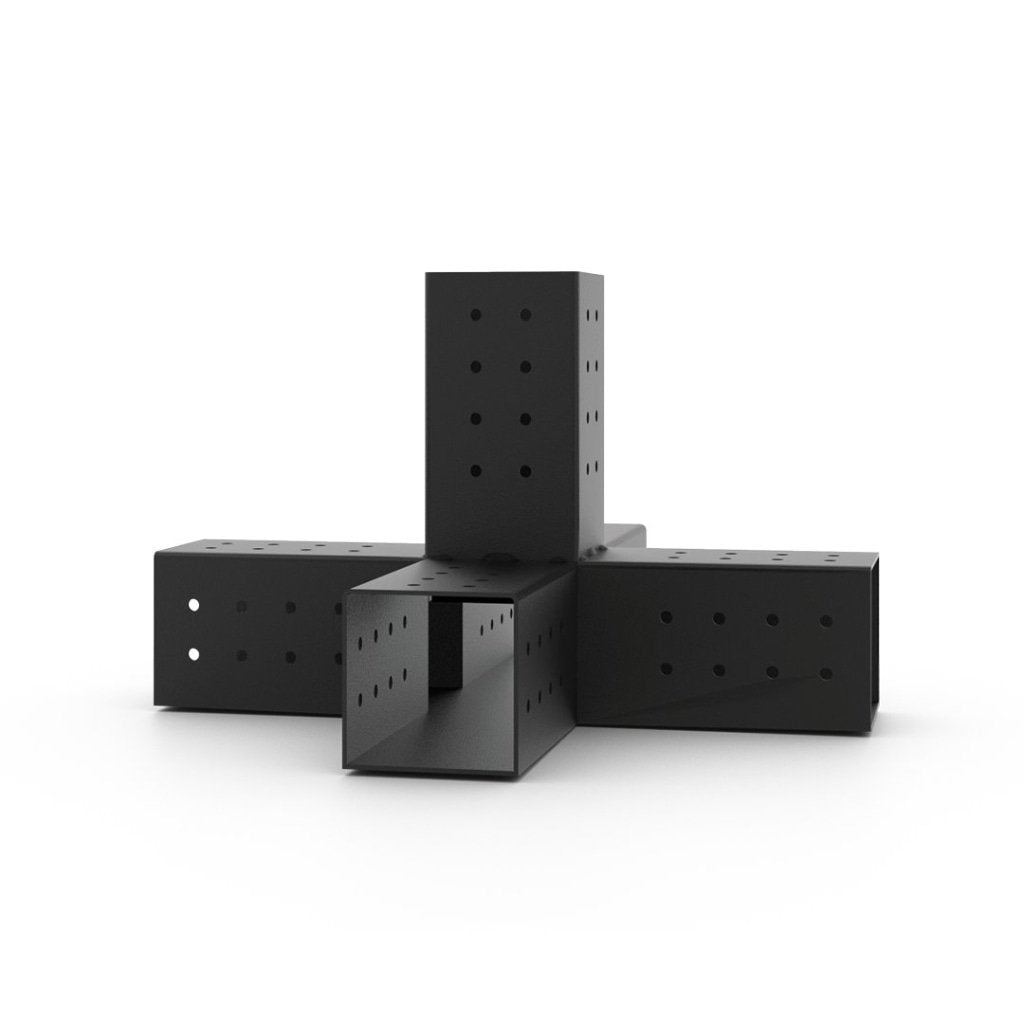

QUINT 5 Arm Pergola Structure Extension Bracket with SOLO for 4x4 Wood Posts

MSRP: $165.00

SKU: G021050MB1

Liquid error (snippets/product-form line 11): include usage is not allowed in this context


Shopify Secured
Checkout

BUILT TO LAST

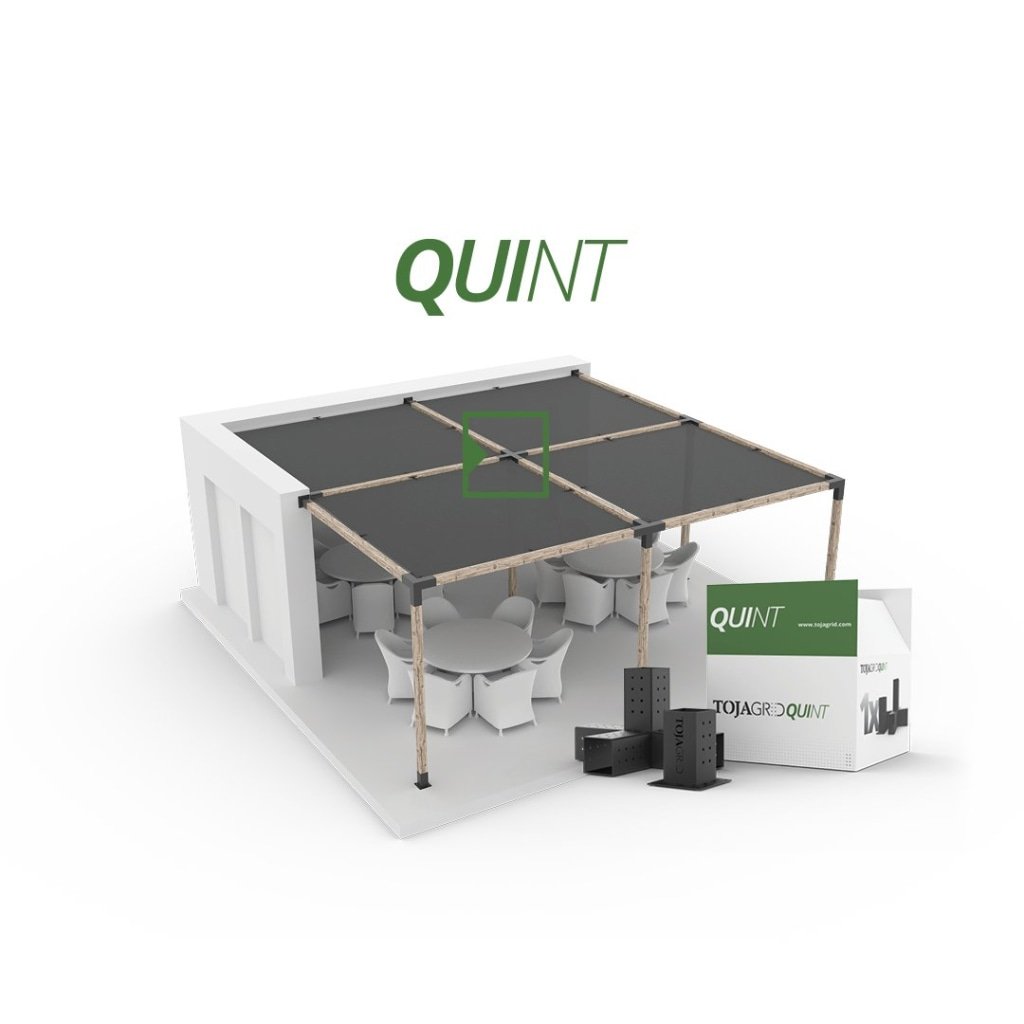

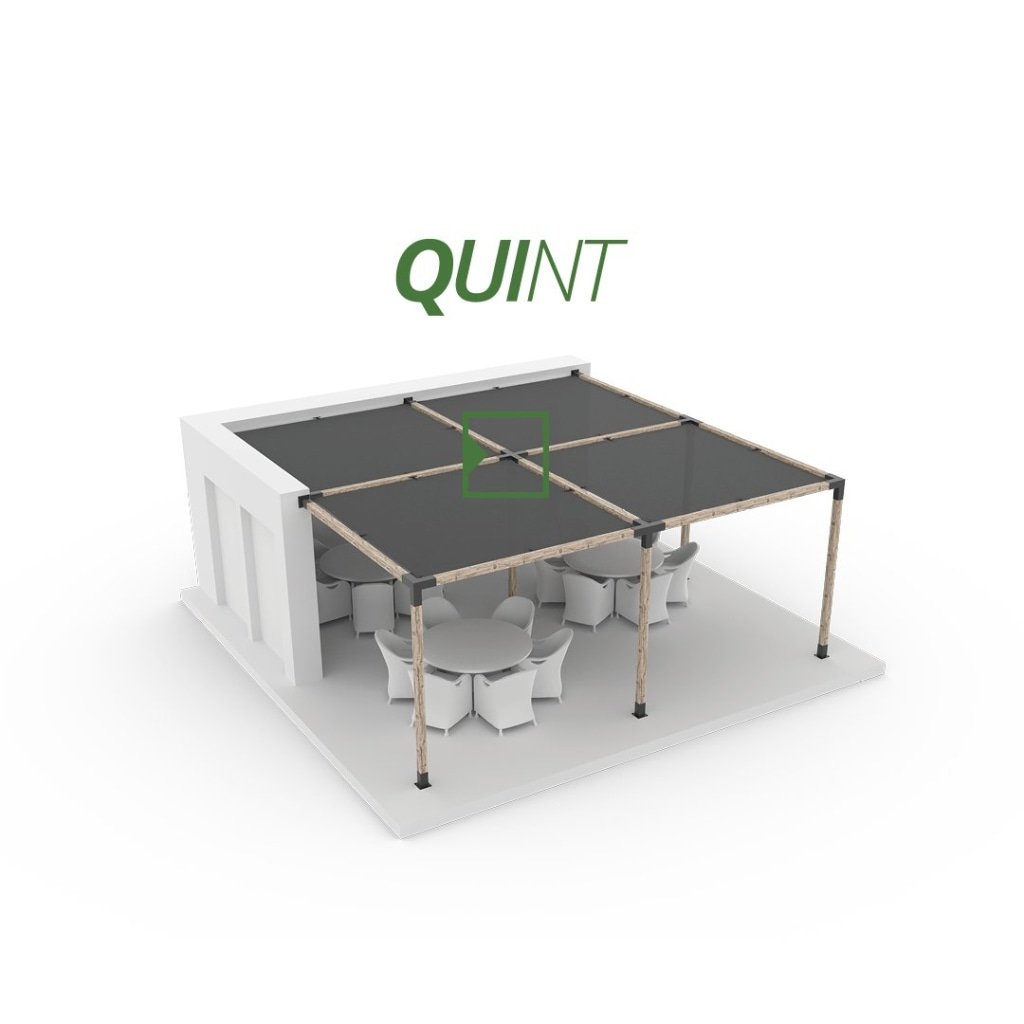

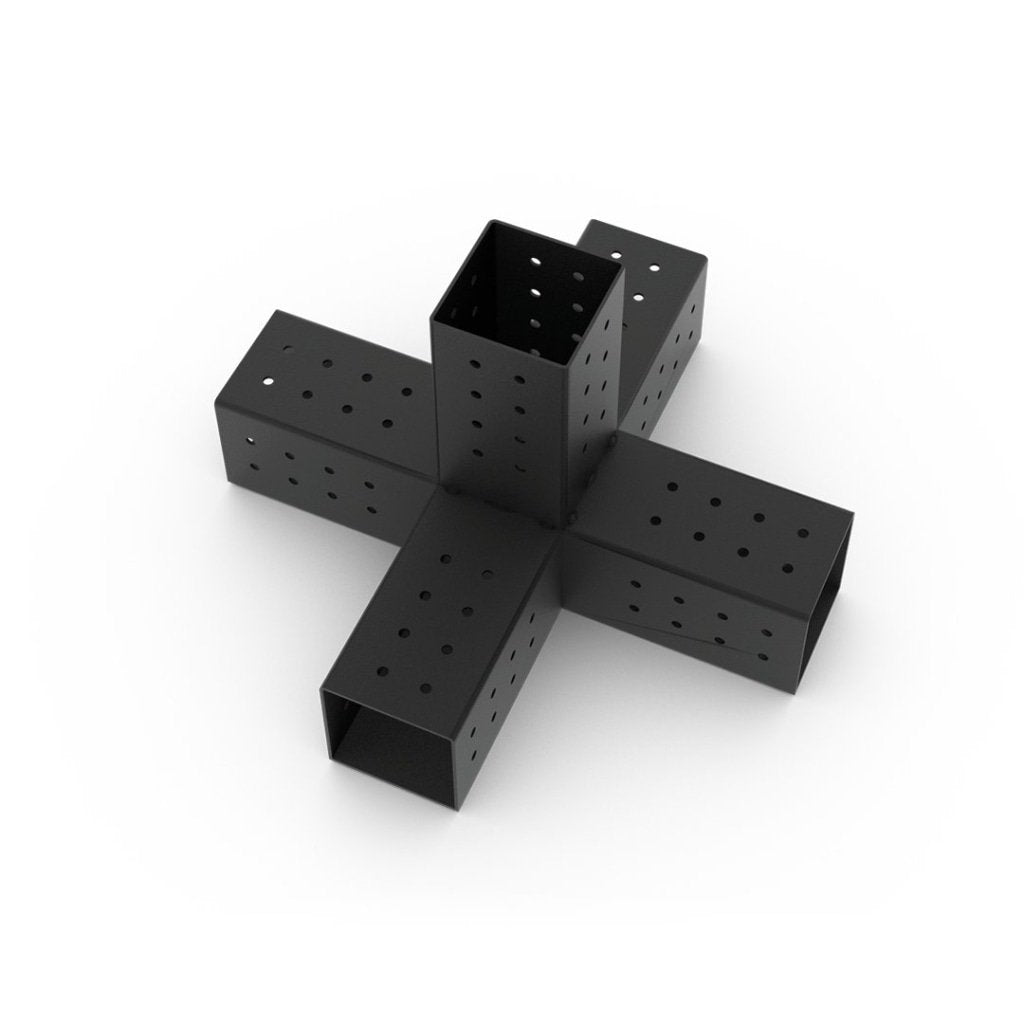

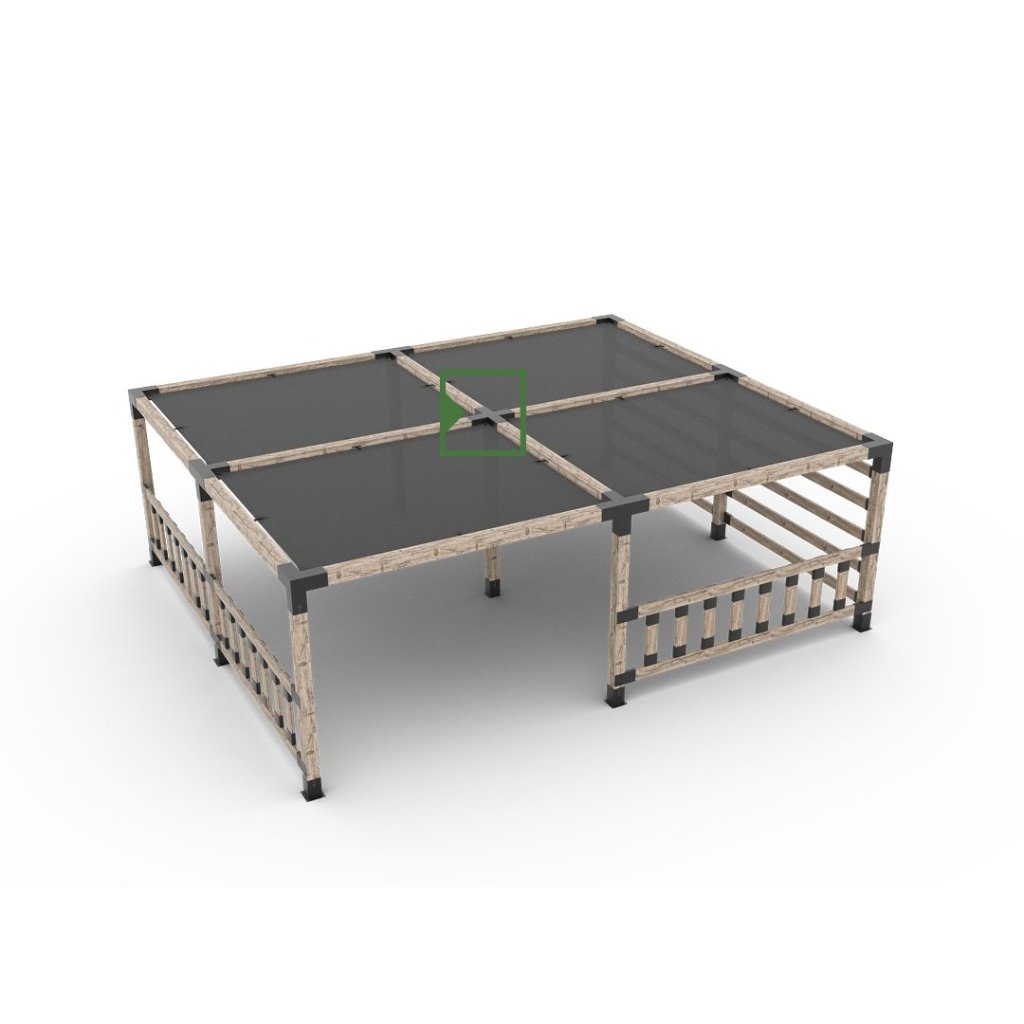

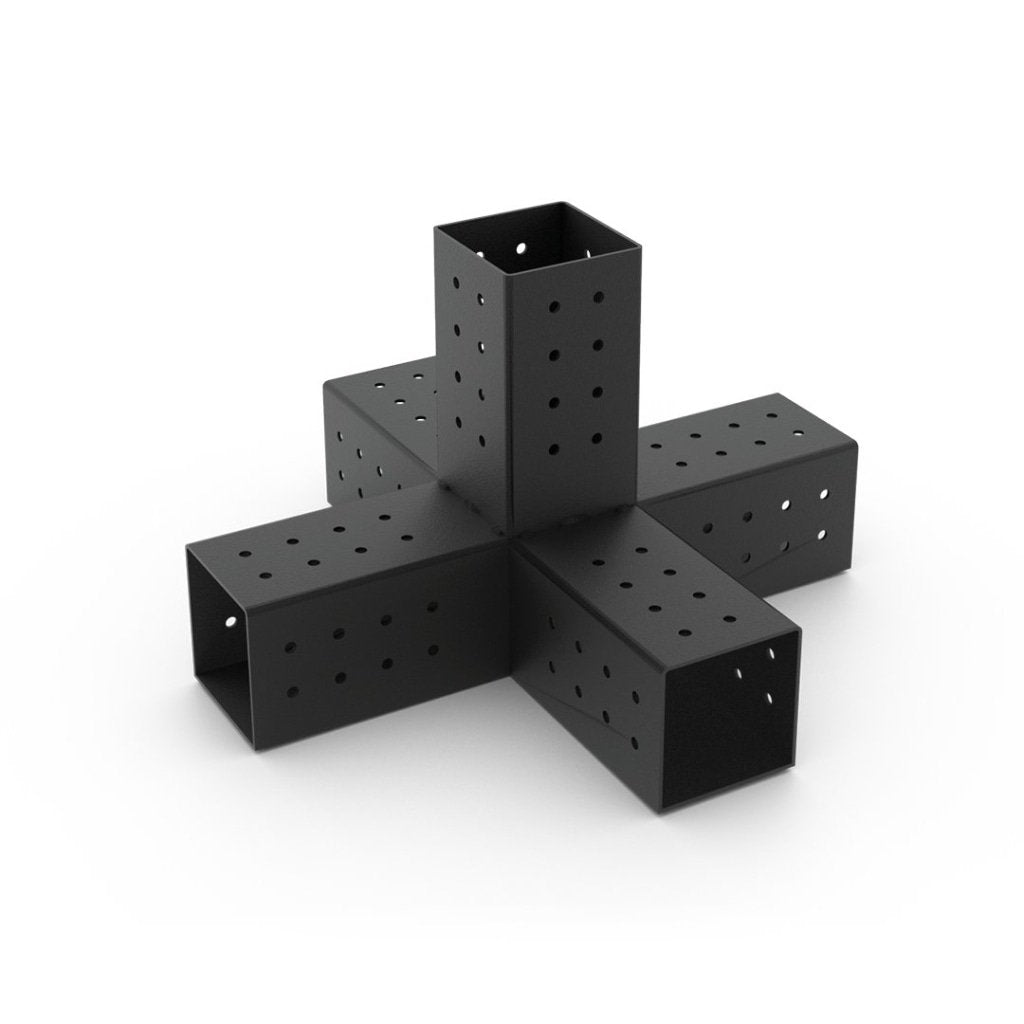

QUINT is our 5 arm structure expansion bracket. It allows you to connect three pergolas in an ‘L’ shape, or to attach four structures to create a sizeable commercial patio.

Toja Tip: Ensure lumber is fully inserted into the bracket cavity, resting on metal tabs for proper installation.

INCLUDED

  • 1x QUINT 5 Arm Pergola Structure Expansion Bracket for 4x4 Wood Posts
  • 1x SOLO for 4x4 Wood Posts
  • 1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps

NOT INCLUDED

  • Wood
    Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.
  • Anchoring Hardware
    Due to different building materials and requirements based on location, we advise on checking building codes and talking to your local hardware store for the best securing hardware for your specific surface.

FEATURES

  • 14-gauge Canadian Steel
  • Canadian Made Brackets
  • Weather-Ready: Coated in weather-resistant materials
  • Laser-cut, bent, and welded
  • All hardware, to secure to lumber, is included
  • Packaged with #12x1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with black plastic head caps
  • Welds on the inside for a clean quality look
  • Recyclable
  • 5-year limited warranty
  • 8 fastening holes per side for attaching accessories

SPECS

  • Category: 4x4
  • Arm Opening (Interior): 3.61” x 3.61”
  • Arm Opening (Exterior): 3.75” x 3.75”
  • Arm Length: 7”
  • Gauge: 14-gauge Canadian Steel
  • Overall Size (1 Pc. QUINT): LxWxH: 17.75 x 17.75 x 10.75”
  • Colour: Black
  • Weight (1 QUINT + 1 SOLO): 20 lbs.
  • Fastening Holes: 0.25”

TIPS



GENERAL

We recommend taking a bracket with you when you purchase your wood to test fit.


WOOD

Our 4x4 brackets accommodate dressed lumber, commonly called 4x4’s at local building supplies. The actual measure is 3.5x3.5”.


SCREWS

  • Each bracket only requires 2 screws per each side/set of eight holes.
  • Insert screws in holes closest to the wood.
  • Hardware to secure to wood is included.
  • Additional screws are available for purchase
