QUINT 5 Arm Pergola Structure Extension Bracket for 6x6 Rough Cut Wood Posts

MSRP: $250.00

SKU: G041051MB1

Liquid error (snippets/product-form line 11): include usage is not allowed in this context


Shopify Secured
Checkout

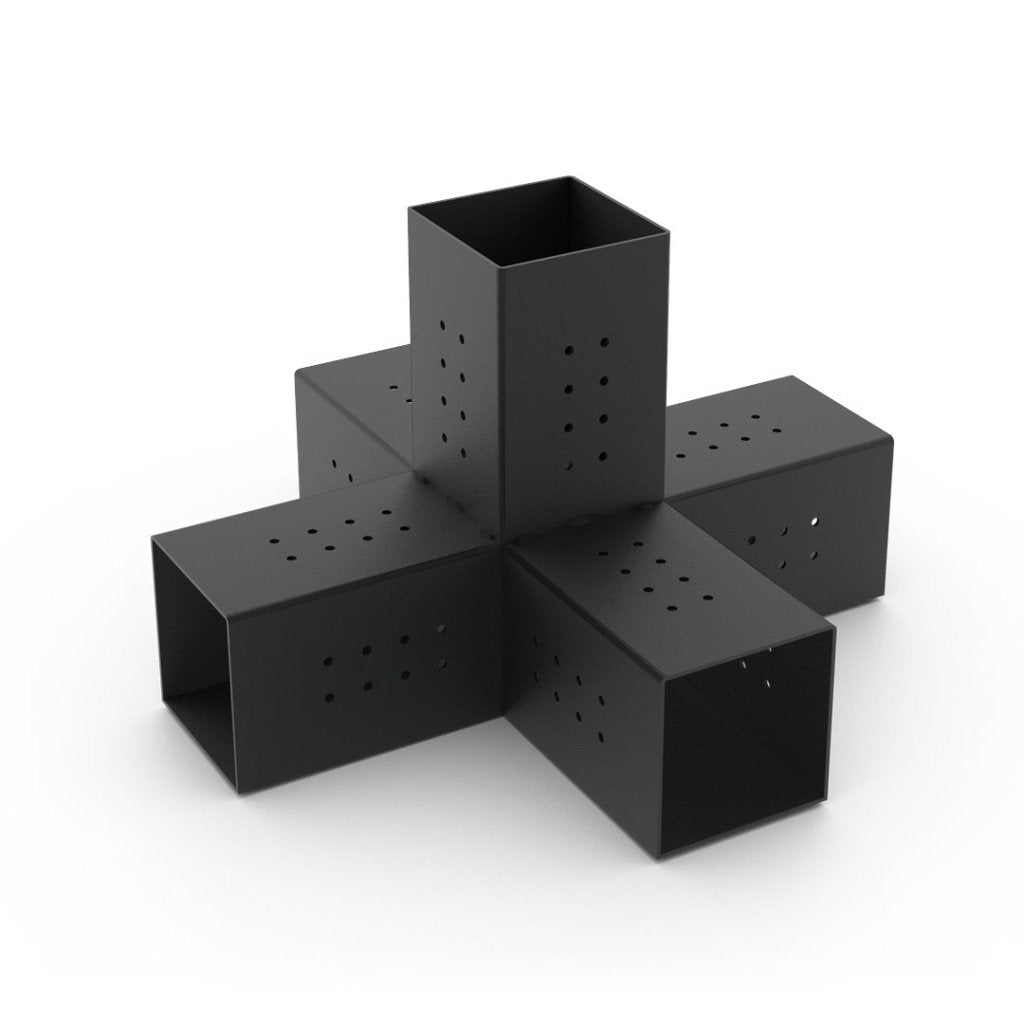

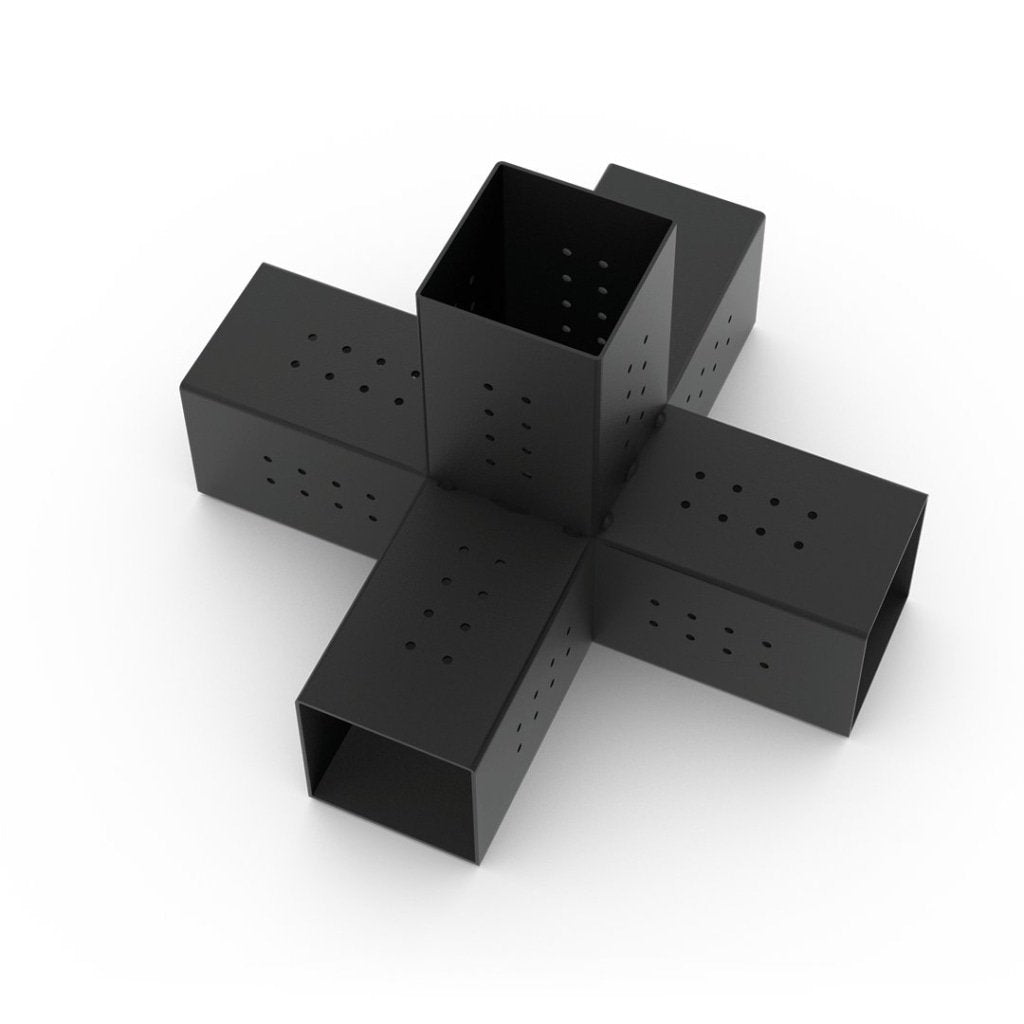

QUINT 5 Arm Pergola Structure Extension Bracket for 6x6 Rough Cut Wood Posts

BUILT TO LAST

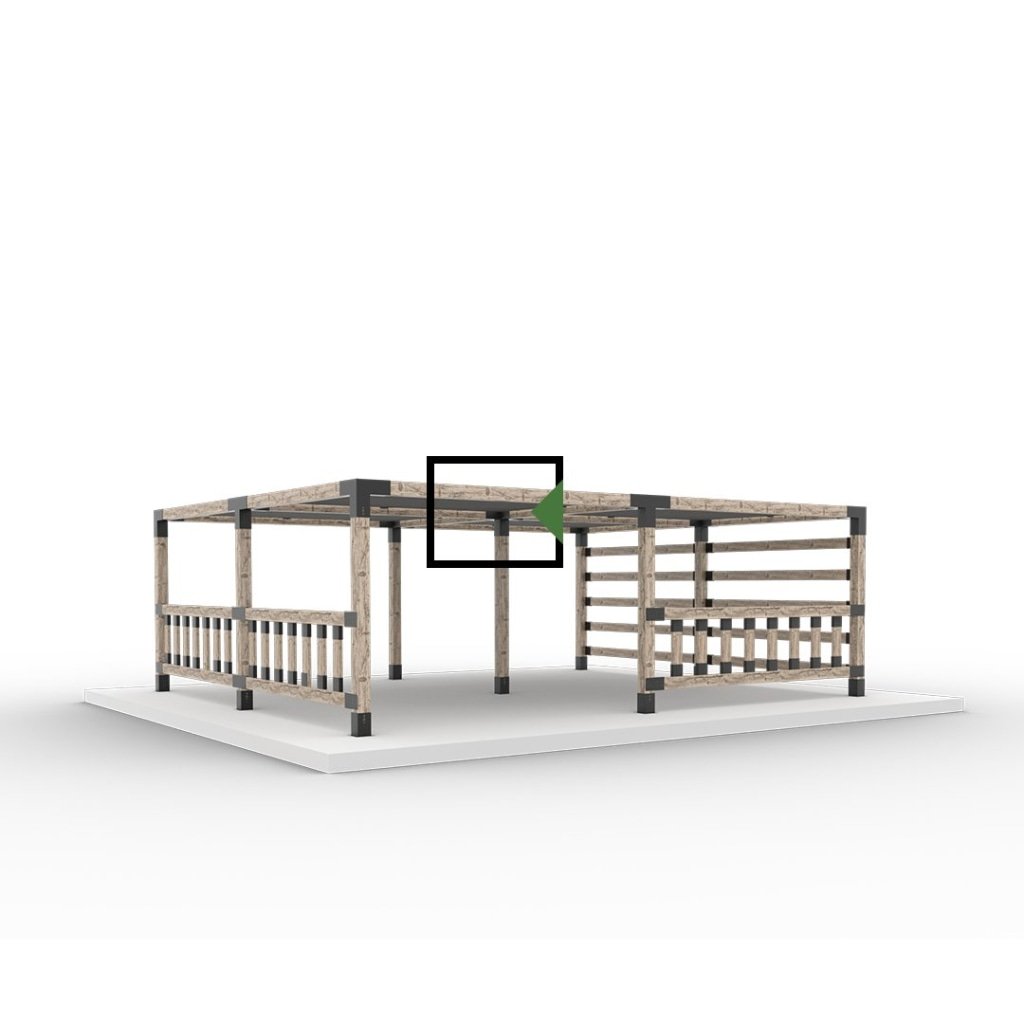

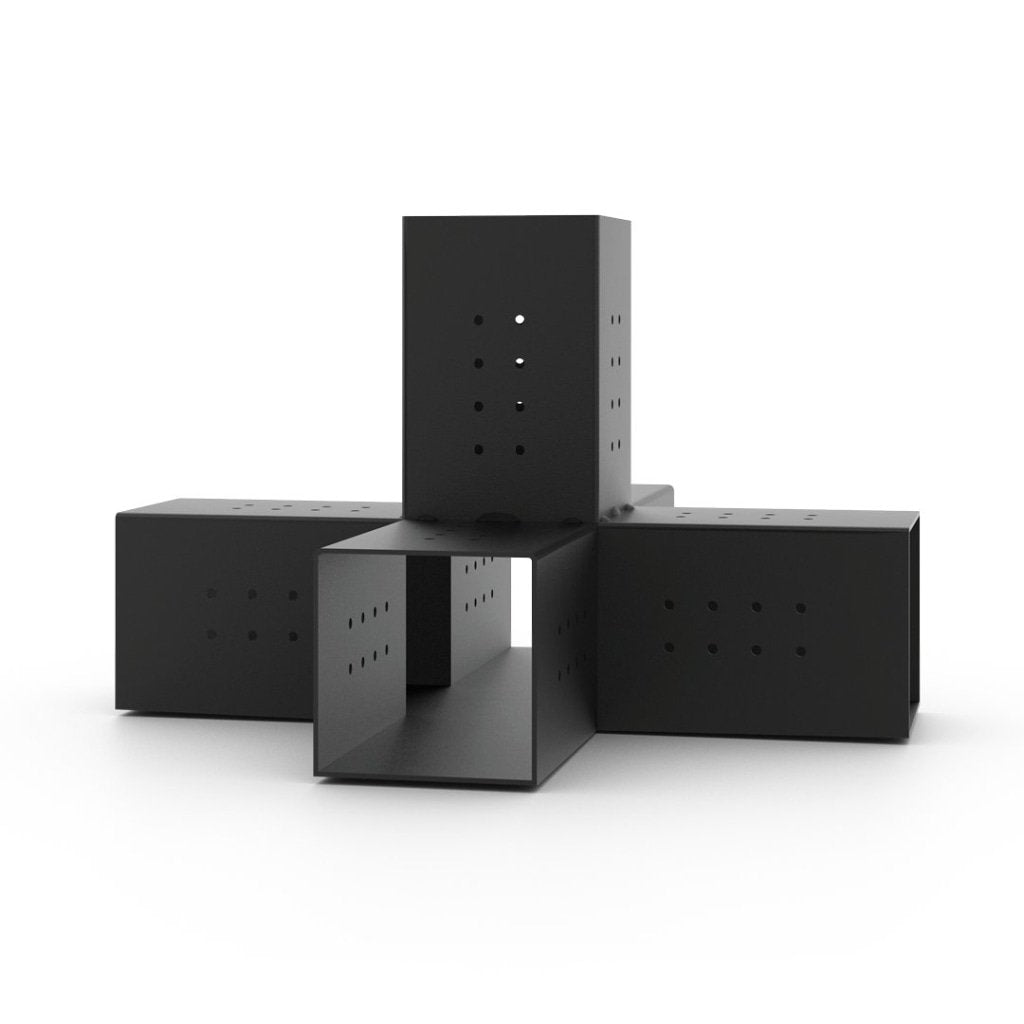

QUINT is our 5 arm structure expansion bracket. It allows you to connect three pergolas in an ‘L’ shape, or to attach four structures to create a sizeable commercial patio.

Toja Tip: Ensure lumber is fully inserted into the bracket cavity, resting on metal tabs for proper installation.

PLEASE READ

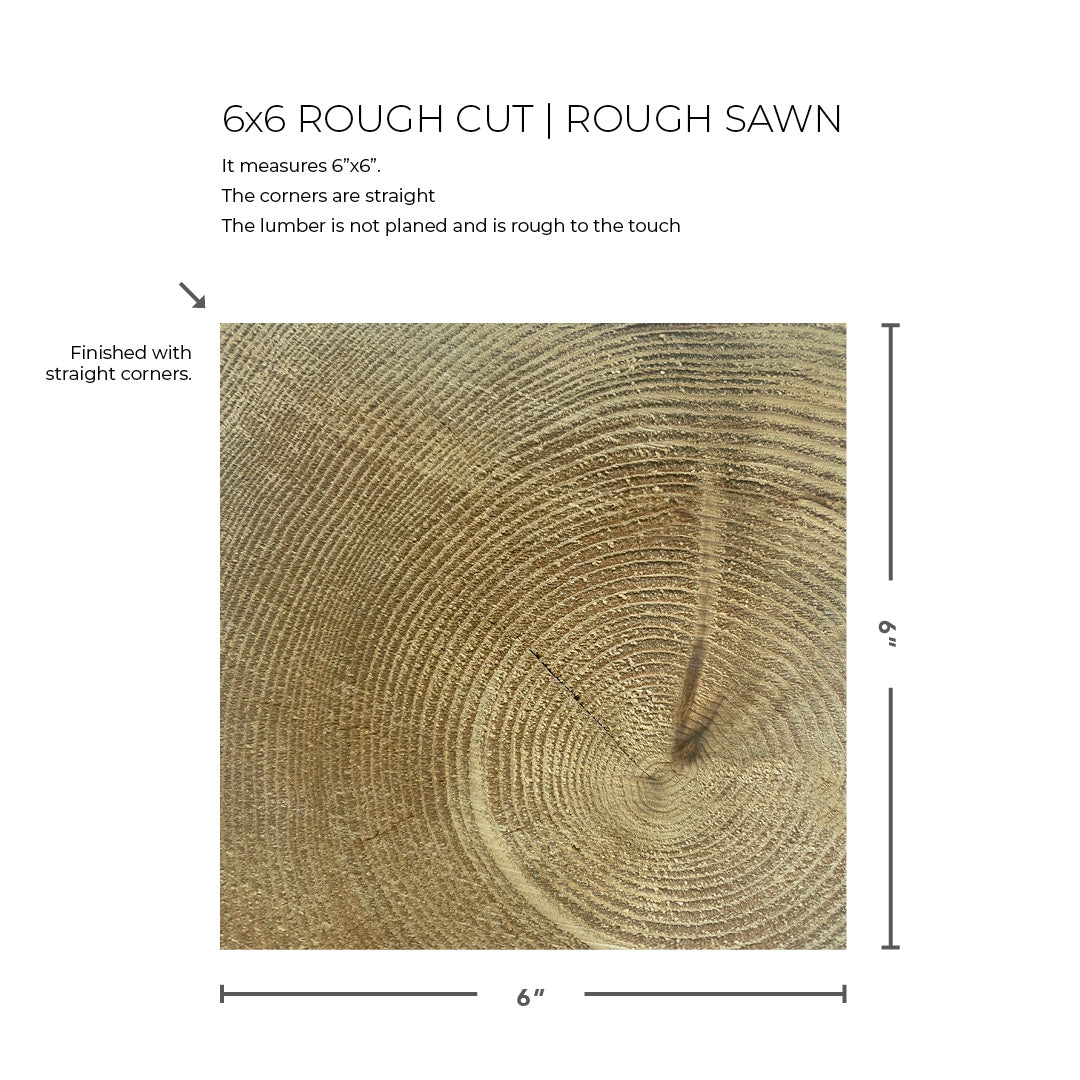

Our 6x6 Rough Cut Lumber Brackets accommodate rough lumber, that actual measure is 6”x6”.
• If you’re buying lumber from your local independent lumber yard, most of them carry a Rough Cut Lumber, this is usually straight edge and has a rough feeling to it and measure a total of 6”x6”.

INCLUDED

  • 1x QUINT 5 Arm Pergola Extension Bracket for 6x6 Rough Cut Wood Posts
  • 1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps

NOT INCLUDED

  • Wood
    Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.
  • Anchoring Hardware
    Due to different building materials and requirements based on location, we advise on checking building codes and talking to your local hardware store for the best securing hardware for your specific surface.

FEATURES

  • 12-gauge Canadian Steel
  • Canadian Made Brackets
  • Weather-Ready: Coated in weather-resistant materials
  • Laser-cut, bent, and welded
  • All hardware, to secure to lumber, is included
  • Packaged with #12x1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with black plastic head caps
  • Welds on the inside for a clean quality look
  • Recyclable
  • 5-year limited warranty
  • 8 fastening holes per side for attaching accessories

SPECS

  • Category: 6x6 Rough Cut Lumber Brackets
  • Arm Opening (Interior): 6.12” x 6.12”
  • Arm Opening (Exterior): 6.328” x 6.328”
  • Arm Height: 9”
  • Gauge: 12-gauge Canadian Steel
  • Overall Size (1 Pc.): LxWxH: 24.25” x 24.25” x 15.25”
  • Colour: Black
  • Weight (1 QUINT): 45 lbs.
  • Fastening Holes: 0.25”
  • Securing Holes: 0.5”

TIPS

GENERAL

We recommend taking a bracket with you when you purchase your wood to test fit.

WOOD

Our 6x6 Rough Cut Lumber Brackets accommodate rough lumber, that actual measure is 6”x6”.

We do have smooth or dressed 6x6 brackets available, which measure 5.5”x5.5”, if you are interested please visit this page: https://dealer.tojagrid.ca/collections/brackets-6x6

SCREWS

  • Each bracket only requires 2 screws per each side/set of eight holes.
  • Insert screws in holes closest to the wood.
  • Hardware to secure to wood is included.
  • Additional screws are available for purchase
