Pergola Kit for 4x4 Wood Posts with KNECT 2x4 Top Rafter Brackets

MSRP: $412.50

SKU: SAX4424MB1

Liquid error (product-form line 11): include usage is not allowed in this context


Shopify Secured
Checkout

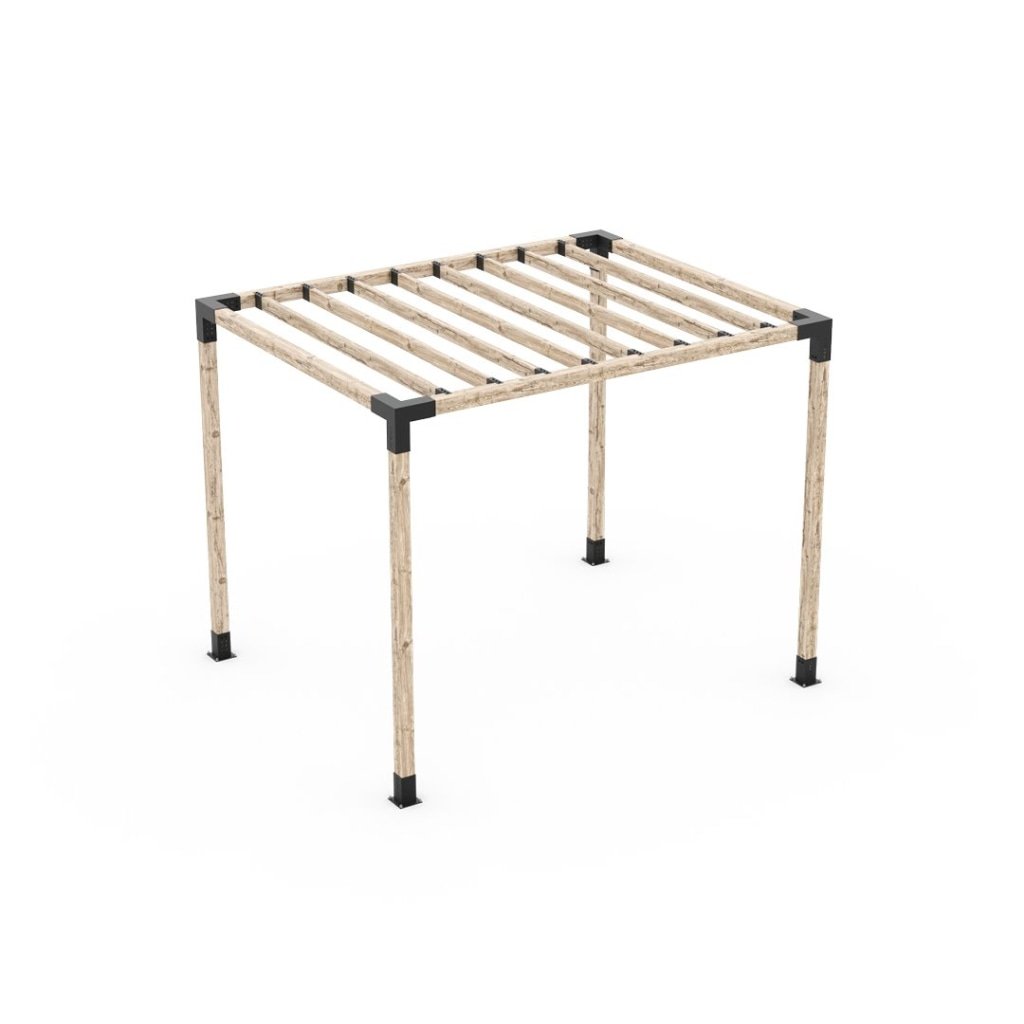

Create your Toja pergola with 2x4 rafters top at any size for the perfect DIY addition to your outdoor space.

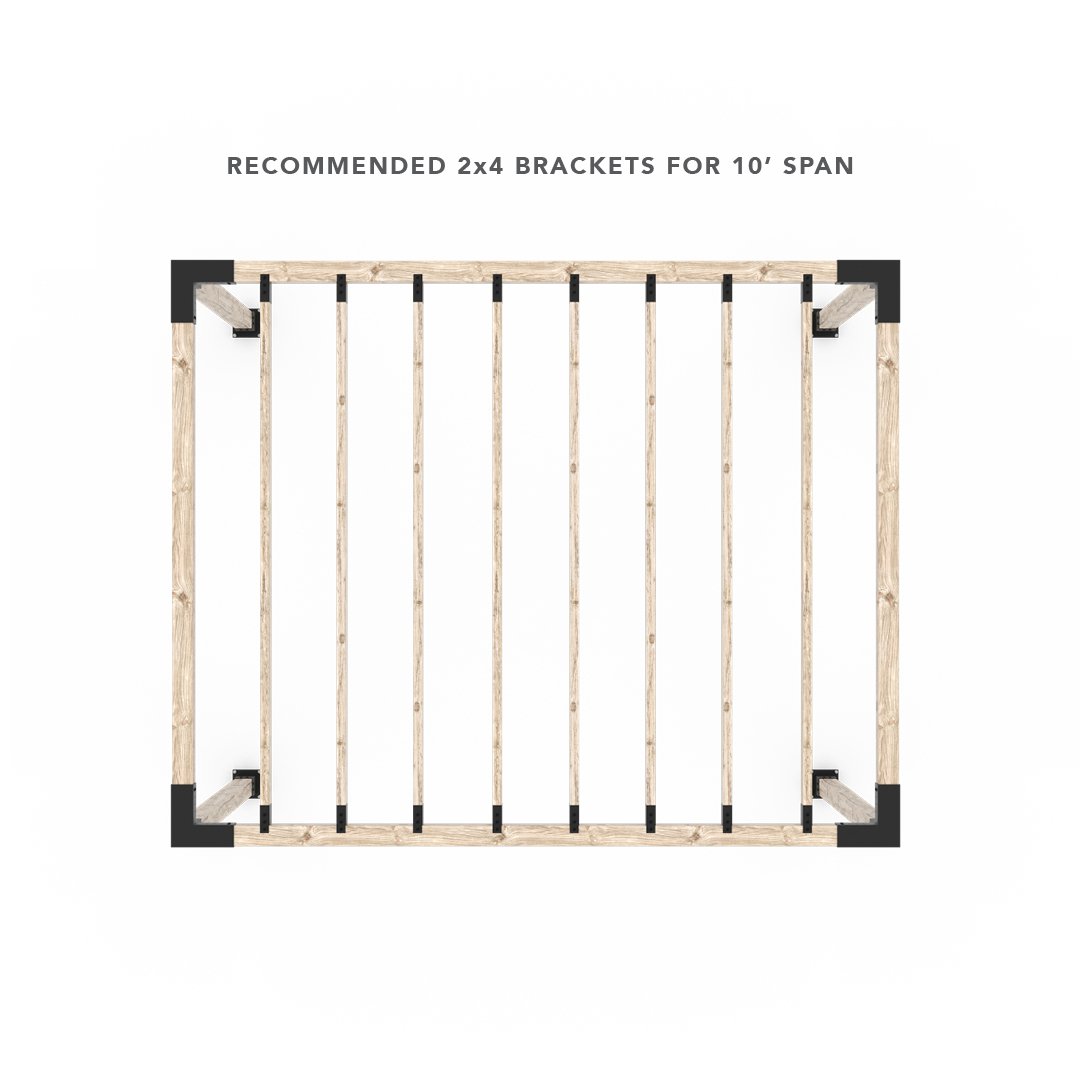

TOJA TIP: Included in the kit are 16, 2x4 brackets to support our recommend of 8 rafters/10' span. For spans longer than 10’ you can purchase additional 2x4 KNECT Top Rafters brackets or space the rafters wider.

* Please note items do NOT ship out kitted; they ship by part. The creation of Toja Grid kits is to simplify the decision-making process.
The parts included in kits ship as retail packages.

INCLUDED

  • 4x TRIO corner brackets
  • 4x SOLO base brackets
  • 16x KNECT 2x4 Top Rafter Brackets
  • 1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps

NOT INCLUDED

  • Wood
    Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.
  • Anchoring Hardware
    Due to different building materials and requirements based on location, we advise on checking building codes and talking to your local hardware store for the best securing hardware for your specific surface.

TIPS



GENERAL

We recommend taking a bracket with you when you purchase your wood to test fit.


WOOD

Our 4x4 brackets accommodate dressed lumber, commonly called 4x4’s at local building supplies. The actual measure is 3.5x3.5”.


SCREWS

  • Each bracket only requires 2 screws per each side/set of eight holes.
  • Insert screws in holes closest to the wood.
  • Hardware to secure to wood is included.
  • Additional screws are available for purchase

SINGLE PERGOLA WITH RAFTERS BUILD

what you need

Ladder(s)

Drill(s)

Measuring Tape

Cardboard (to be placed under the brackets to not scratch your surface or the brackets)

LUMBER

When purchasing your lumber, always take a bracket with you to ensure a proper fit.

You can select whatever lumber suits your style and budget. It must be dry and straight.

Brackets use dressed lumber.
4”x4” (3.5”x3.5”) Bracket Cavity is 3.61”x3.61”
6”x6” (5.5”x5.5”) Bracket Cavity is 5.62”x5.62”

SCREWS

Each bracket only requires 2 screws per each side/set of eight holes.

1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps are included

Insert screws in holes closest to the wood.

Hardware to secure to wood is included.

Additional screws are available for purchase.

SECTION 1 BUILDING THE TOP

BUILDING A ‘U’: Insert your lumber into the TRIO brackets. See figure 1.

BUILDING AN ‘I’: Insert your lumber into the TRIO brackets. See figure 2.

Secure bracket to lumber with provided screws.

SECTION 2 INSTALLING RAFTERS

Build rafters. See figure 3.

Secure rafter brackets to lumber. See figure 4.

Space rafters out evenly across the top of your pergola.*

Secure brackets to lumber with provided screws.

*Our rafter top kits include 16 rafter brackets for 8 rafters, per 10’ span. For spans longer than 10’ you can purchase additional rafter brackets or space the rafters wider apart.

SECTION 3 INSERT THE POSTS

Insert your vertical posts on the first side.

Secure bracket to lumber with provided screws.

SECTION 4 COMPLETE

Insert your lumber into side 2 to complete your pergola.

Secure bracket to lumber with provided screws.

Anchor to your surface. Remember Anchoring hardware is NOT included as surfaces will vary from build to build. A local building supply retailer will be a helpful resource.
