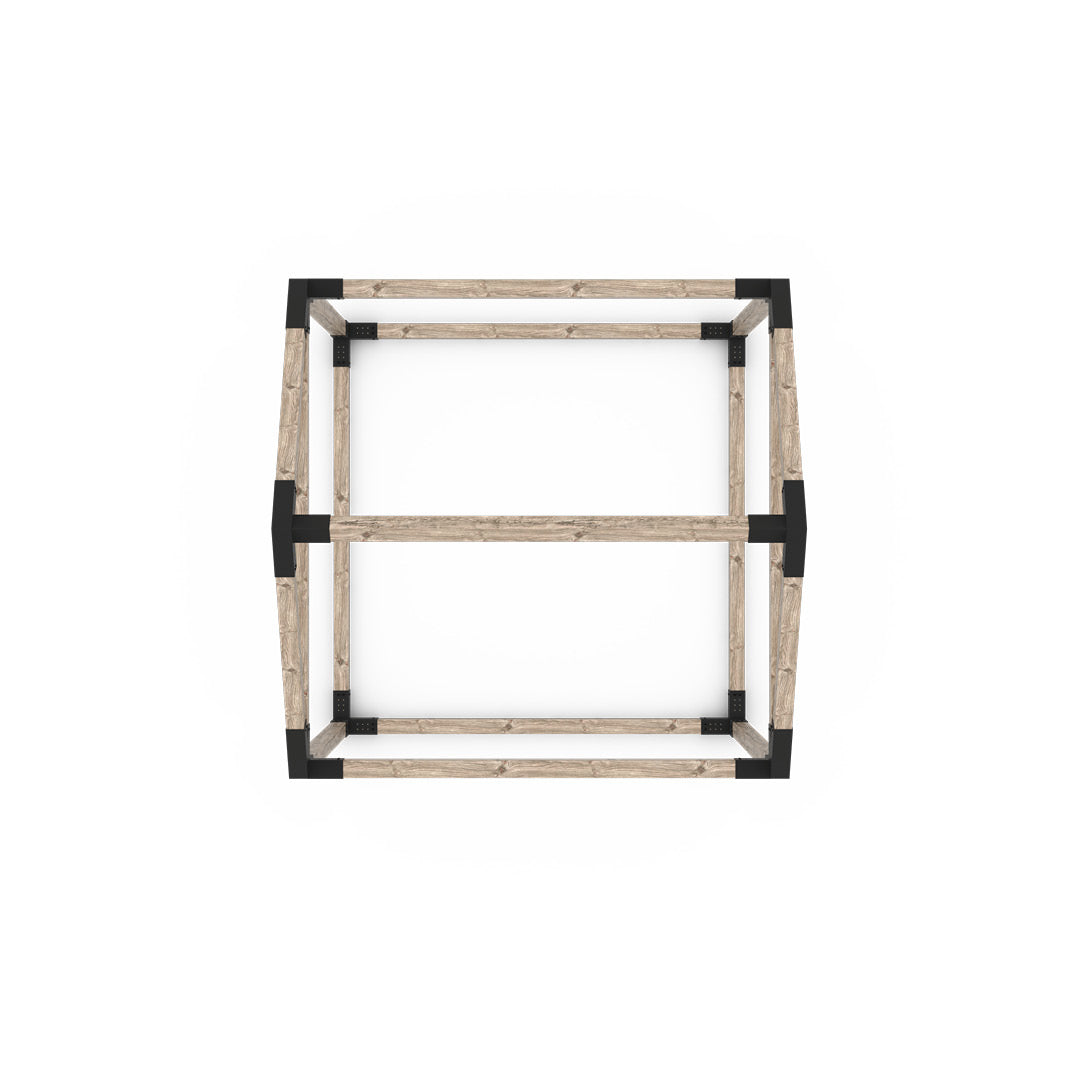

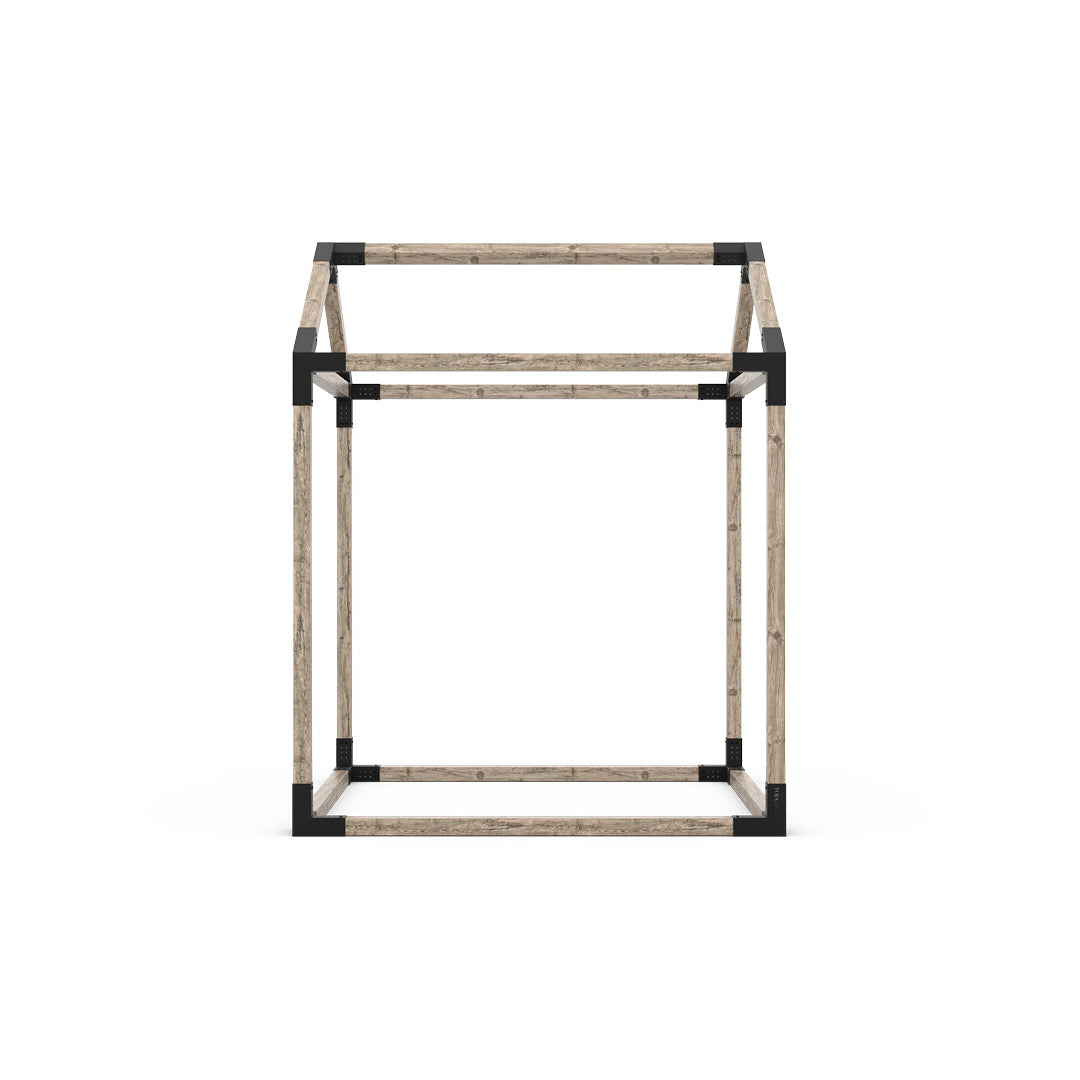

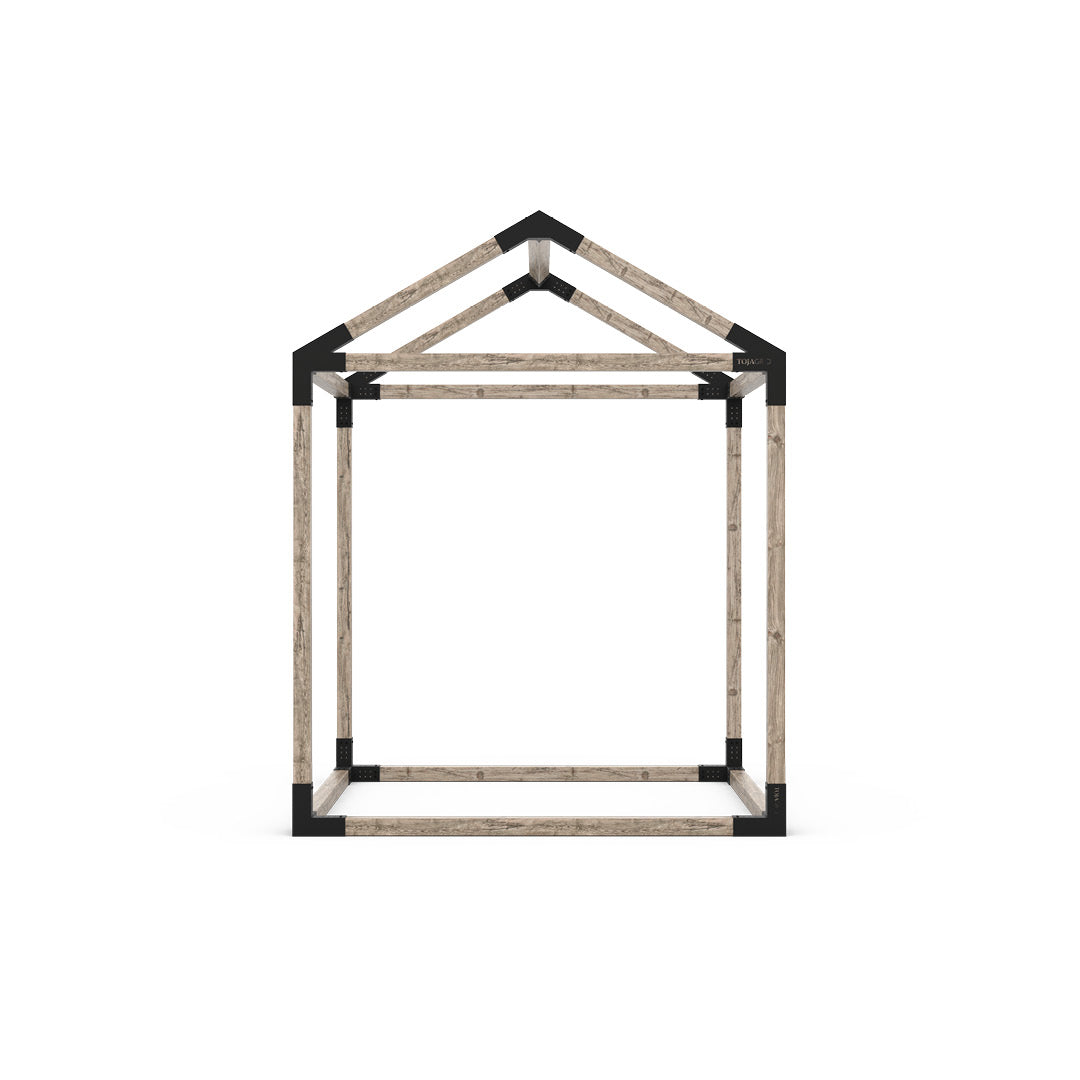

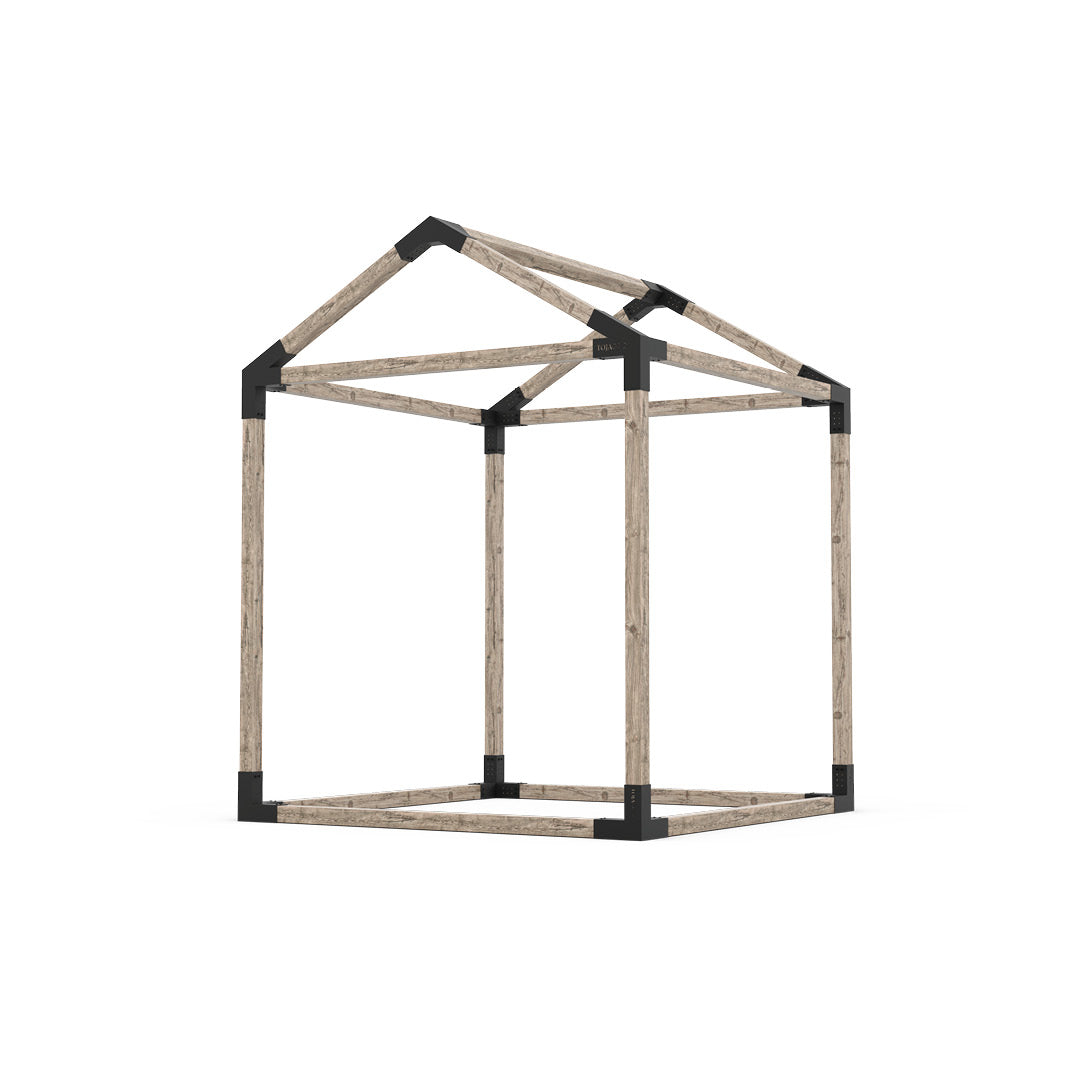

GRID 30 Single Pergola Kit with Base for 4x4 Wood Posts
Single Angled Roof with Base Pergola Kit
The GRID 30 Single A-frame Pergola kit with Base allows you to build a single structure with peaked roof that you can DIY and add onto to create structures such as a greenhouse or shed.
- Ensure lumber is fully inserted into the bracket cavity, resting on metal tabs for proper installation.
- See sizing chart for reference of wood. We advise consulting with your local building codes. When customizing or adding to your build, remember to consult an engineer.
The GRID 30 Collection was designed and developed to allow you to build an angled and peaked roof pergola. GRID 30 brackets are not structural brackets or intended to have fixed roofs, customization or anything outside the intended and indicated use of pergola as shown. For anything outside our recommendation, we advise consulting with an engineer. Always check your local building codes, HOA, and municipal requirements in advance of building as they vary by city/state and region.
Peaked Roof Calculator for 4x4 Lumber
Take advantage of this lumber calculator to help guide you with your peaked roof pergola build from the GRID 30 Collection. Just enter the length/span of lumber (A) to determine the length/span for lumber required for peaked roof (B). Enter the length of lumber (C) to determine the total overall height (D) of your build.
- 4x TRIO corner brackets
- 2x TRIO 30 Left
- 2x TRIO 30 Right
- 2x Peak TRIO 30
- 1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps
Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.
- Anchoring Hardware
Due to different building materials and requirements based on location, we advise on checking building codes and talking to your local hardware store for the best securing hardware for your specific surface.
- Each bracket only requires 2 screws per each side/set of eight holes.
- Insert screws in holes closest to the wood.
- Hardware to secure to wood is included.
- Additional screws are available for purchase
